A leading provider for Audio Video and IT Distribution & Connectivity Solutions, companies like Crestron Atlona & Lightware is known for Ultra HD Matrix Switcher Systems by which we can place all our High Definition Sources at backend, giving a clean cabinet under the TV.

Features of Concept of Matrix Switchers

• Allows Any Source To Be Routed To Any Display At Home, Thus Reducing The Need For Multiple Sources For Various Rooms.
• System Service Is Easier Since All Hardware Is Centrally Located.
• As All the Sources (Apple TV, Blu Ray, Media Player, Set Up Box, Net Flex Box, Etc.) Are At The Backend Of Central Location, Hence No Cabinet Underneath The TV!

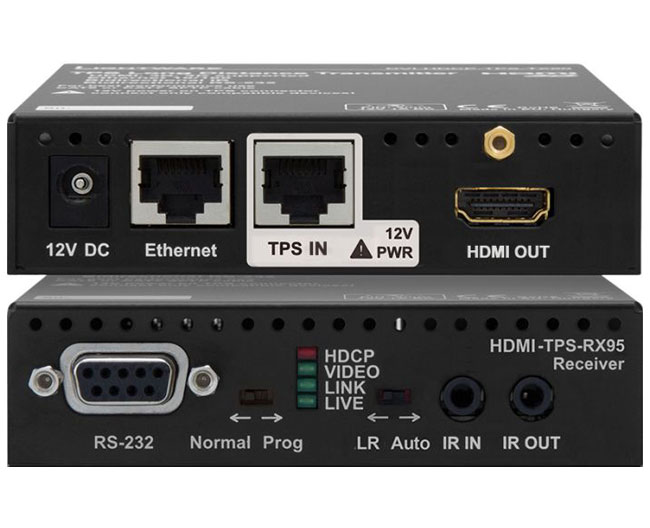

4K Transmitter Set

This mainly used because of hdmi cable length limitations. This product gives us option to install all equipment in a centralized rack and run single CAT 5/6/7 cable from rack to the TV location to send high resolution audio video and control signal up-to 100 mtr on a single CAT cable.

HDBaseT transmits uncompressed ultra-high-definition video (up to 4K), audio, power (up to 100W), Ethernet, USB, and other control communication (such as RS232 and IR) over category 5e cable or better up to 100 metres (330 ft), using the same 8P8C modular connectors used for Ethernet.

HDBaseT connects and networks CE devices such as set-top boxes, DVD players, Blu-ray Disc players, personal computers (PCs), video game consoles, CCTV NVR and AV receivers to compatible digital audiodevices, computer monitors, and digital televisions.

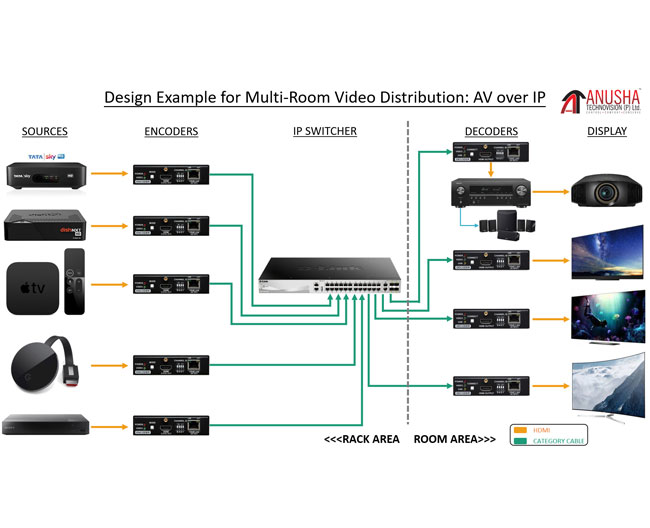

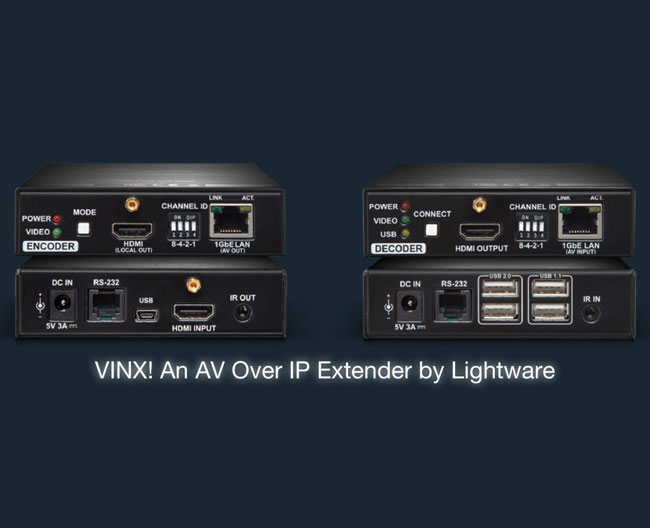

AV over IP System

AV-over-IP (Audio-Visual over Internet Protocol) is the transmission of audio, video and control signals over existing network cable infrastructure. In comparison to conventional analogue AV environments, AV over IP refers to the use of standard network equipment to switch and transmit video and audio signals. We can transmit 4k 4:4:4 signal on 10 Gbps network without any compression on network with some products.

AV over IP is evolving key aspects such as:

• Scalable switching (the number of sources attached is no longer as limited, when physical ports run out, multiple IP switches can be connected to expand).
• Breaking the distance barriers
• Better ratio of inputs to outputs
• Video standards extend beyond the local facility
• Convergence with data and communications
• New options in video processing
